ISUZU GIGA / Model code :PJ-CYM77Q6 / Engine model : 6UZ1

The Isuzu Giga PJ-CYM77Q6 is a Japanese heavy-duty truck from the mid-2000s Giga generation and is associated with Isuzu's 6UZ1 diesel engine. For buyers in the Democratic Republic of the Congo, this type of truck can suit demanding commercial work such as regional freight, construction support, mining-related transport and bulk cargo operations when the actual body, payload and drivetrain match the job.

The 6UZ1 is a 9,839cc inline six-cylinder turbo-diesel with electronically controlled common-rail fuel injection. However, buyers should not assume that every CYM77Q6 has the same power output, payload, transmission or body. The correct buying decision should be based on the full chassis number, registered payload, gross vehicle weight, body type, engine condition, transmission, brake system, tyres, chassis condition and total landed cost to DR Congo.

Isuzu Giga PJ-CYM77Q6 Quick Facts

Item	Buying Information
Manufacturer	Isuzu
Model	Giga
Model Code	PJ-CYM77Q6
Engine Family	6UZ1
Engine Displacement	9,839cc
Engine Layout	Inline 6-cylinder diesel
Fuel System	Electronically controlled common-rail diesel system
Aspiration	Turbocharged
Vehicle Class	Heavy-duty commercial truck
Production Period	PJ-CYM77Q6 is documented in Isuzu records from 2006–2007
Typical Heavy-Duty Uses	Freight, construction, bulk transport and specialized commercial work

Payload, transmission, dimensions and commercial body must be confirmed on the individual vehicle. The model code alone does not identify every specification.

What Is the Isuzu 6UZ1 Engine?

The 6UZ1 is one of Isuzu's heavy-duty diesel engine families used in Giga trucks.

Key verified technical characteristics include:

9,839cc displacement
Inline six-cylinder layout
Direct-injection diesel combustion
Turbocharging
Electronic common-rail fuel injection

Isuzu has produced several 6UZ1 specifications over the years. Output and torque therefore depend on the exact engine suffix, vehicle year and calibration.

For example, Isuzu's official documentation for a 2006 6UZ1-TCS specification lists 380PS, while later 6UZ1 versions use different torque and emissions specifications. Therefore, a generic “400PS 6UZ1” figure should not automatically be applied to every PJ-CYM77Q6.

Before ordering parts or comparing power specifications, confirm the complete engine designation on the actual truck.

Why the PJ-CYM77Q6 Model Code Matters

The Isuzu Giga name covers many different heavy-duty chassis.

Examples found in the Japanese used-truck market include:

These trucks can have different axle layouts, gross vehicle weights, wheelbases, transmissions and commercial bodies.

Before purchasing a PJ-CYM77Q6, confirm:

This information affects spare-parts sourcing, shipping, customs classification and whether the truck matches the intended work in DR Congo.

Country × Vehicle × Use: Why a Giga Can Suit DR Congo

In DR Congo, the Isuzu Giga is most relevant when the business requires genuine heavy-duty capacity rather than a light- or medium-duty truck.

The country has long inland transport routes and major activity in logistics, construction, agriculture and mining-related industries. For this environment, a correctly specified heavy truck can support businesses that regularly move large loads.

Regional Freight and Logistics

A cargo or flat-body Giga can support:

Industrial supplies
Packaged commercial cargo
Construction materials
Food and general merchandise
Long-distance business logistics

For regional transport, engine cooling, tyres, brakes and drivetrain condition should receive the same attention as purchase price.

Mining and Industrial Support

In mining and industrial regions, heavy-duty trucks can be used to move:

Equipment
Industrial materials
Workshop supplies
Bulk cargo
Construction-related materials

The correct body and payload are critical. A standard cargo truck should not be treated as a specialized low-bed, dump or tanker unless it is actually configured for that work.

Construction

Giga chassis are also available internationally in working-body configurations such as:

Dump trucks
Mixer trucks
Tankers
Crane-related commercial vehicles
Specialized industrial bodies

When buying one of these trucks, inspect both the base vehicle and the mounted equipment.

Heavy-Duty Truck or Medium-Duty Truck?

A Giga is not automatically the best choice simply because it can handle heavier work.

Buying Point	Isuzu Forward	Isuzu Giga
Truck Class	Medium-duty	Heavy-duty
Urban Maneuverability	Generally easier	Requires more operating space
Typical Cargo Requirement	Medium commercial loads	Heavy commercial loads
Tyre and Maintenance Cost	Generally lower	Generally higher
Long Heavy-Duty Routes	Depends on specification	More appropriate for heavy-duty work

If the business does not require the capacity of a Giga, a smaller Isuzu Forward may reduce fuel, tyre and maintenance costs.

Understanding the 6UZ1 Power Specification

One of the biggest mistakes when researching the 6UZ1 is copying one power figure from one Giga generation and applying it to every truck.

The 6UZ1 family has been produced with different:

Power ratings
Torque ratings
Turbo specifications
Emissions systems
Transmission combinations

For a PJ-CYM77Q6 buyer, verify the engine plate and original specification before using horsepower or torque in fleet calculations.

The most important practical checks remain:

What to Check on a Used 6UZ1 Engine

Cold Start

Request a true cold-start video whenever possible.

Look for:

Long cranking
Uneven idle
Abnormal knocking
Persistent white smoke
Persistent blue smoke

A truck that has already been warmed before filming may hide cold-start problems.

Common-Rail Fuel System

The 6UZ1 uses electronically controlled common-rail fuel injection.

Check for:

Engine warning lights
Uneven running
Injector-related faults
Fuel leakage
Loss of power

Before importing an older electronic heavy-duty diesel, confirm that local workshops can diagnose the fuel system correctly.

Turbocharger

Inspect:

Abnormal turbo noise
Oil leakage
Boost hoses
Intake piping
Power loss under load

A turbocharger problem on a heavy-duty truck can create a significant repair cost.

Cooling System

Heavy loads and long-distance operation place substantial demand on the cooling system.

Check:

Cooling-system condition is especially important for a truck expected to work in warm conditions under heavy load.

Transmission: Confirm the Actual Truck

Do not assume every PJ-CYM77Q6 uses the same transmission.

Older Giga trucks can be found with different manual or automated transmission specifications depending on chassis and year.

Manual Transmission

Check:

Automated Transmission

Where an automated system is fitted, confirm:

Correct gear engagement
Shift quality
Dashboard warnings
Cold and warm operation
Local diagnostic capability

Transmission choice should reflect the destination's workshop capability as well as driver preference.

Axle Configuration and Differential Checks

A heavy-duty multi-axle truck requires more drivetrain inspection than a light commercial truck.

Before purchase, confirm:

Do not infer the full drivetrain specification solely from the photographs.

Brake System Inspection

A heavy truck's braking system is a major safety and maintenance consideration.

Check:

If the truck has an engine brake or retarder-related system, confirm correct operation as well.

Chassis Condition: One of the Most Important Buying Checks

A PJ-CYM77Q6 belongs to a mid-2000s Giga generation. On a truck of this age, structural condition should be carefully inspected.

Check:

A clean cab does not prove that the chassis is in good condition.

Tyres Can Change the Real Cost of a Used Giga

Heavy-duty commercial tyres are expensive, and a multi-axle Giga uses several of them.

Inspect:

Tyre size
Load rating
Tread depth
Sidewall cracking
Uneven wear
Matching sizes across the required axle positions

Also confirm whether the correct tyre sizes are readily available near the truck's operating area in DR Congo.

Suspension Inspection

Depending on specification, a heavy-duty Giga may use leaf springs, air suspension or a combination of suspension systems.

Inspect:

The exact suspension should be confirmed on the individual truck.

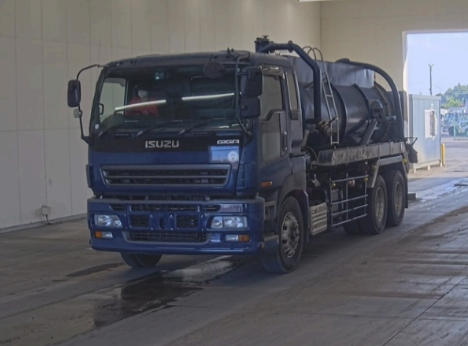

If the Giga Is a Tanker, Inspect the Tank Separately

PJ-CYM77Q6 trucks can be found in the Japanese used market with tanker bodies.

A tanker requires a second inspection beyond the truck chassis.

Tank Structure

Check:

Tank corrosion
Cracks
Previous repairs
Tank mounting points
Subframe condition
Internal condition where inspection is possible

Pump and PTO

If fitted, test:

The previous cargo carried by the tank should also be confirmed before changing its intended use.

If the Giga Is a Dump Truck

For a dump configuration, inspect:

A powerful 6UZ1 engine does not compensate for a damaged hydraulic system or cracked dump subframe.

If the Giga Is a Cargo or Wing Truck

For general freight, body condition directly affects business usefulness.

Check:

Always compare internal cargo dimensions when purchasing for a specific logistics contract.

6UZ1 vs Older Large Isuzu Engines

Older Giga models can use large-displacement Isuzu engines such as 10PE1 and 6WF1.

Buyer Point	Older Large-Displacement Giga	6UZ1 Giga
Engine Generation	Older	Later electronic diesel generation
Fuel Control	Depends on engine generation	Electronic common-rail
Engine Size	Some engines significantly larger	9.839L
Workshop Needs	Older heavy-diesel knowledge	Electronic fuel-system diagnosis important
Main Buying Priority	Condition and parts support	Condition, electronics and parts support

The larger engine is not automatically the better choice. Payload, gearing, body type, fuel consumption and maintenance support all matter.

6UZ1 vs Newer Giga

The 6UZ1 engine family continues to be used in newer Isuzu Giga generations, but later trucks have significantly newer control, emissions and transmission technology.

Current 6UZ1 specifications can include:

Advanced common-rail injection
Variable-geometry turbocharging
More sophisticated emissions after-treatment
Modern automated transmission combinations
Newer safety systems

Do not apply current-Giga performance figures directly to a 2006-era PJ-CYM77Q6.

A newer truck can offer modern technology and reduced vehicle age, while an older Giga may be attractive where purchase budget and familiarity with older truck systems are more important.

Fuel Economy: Avoid Generic Heavy-Truck Claims

The previous version of this article described the PJ-CYM77Q6 as having excellent fuel economy without enough context.

For a heavy-duty truck, there is no single km/L figure that can be applied safely across all uses.

Fuel consumption changes with:

A loaded tanker and an empty cargo truck using the same engine can have very different fuel consumption.

Use actual operating data from a similar truck and route when estimating business fuel cost.

Country × Vehicle × Use: Kinshasa and Regional Logistics

Businesses operating around Kinshasa or on longer regional routes should consider more than engine power.

Check:

If the business mainly handles lighter city cargo, a smaller Forward may reduce operating cost. For repeated heavy freight, the Giga class becomes more relevant.

Country × Vehicle × Use: Mining and Industrial Areas

For industrial operations around major mining regions, downtime can be more expensive than the initial difference in vehicle price.

Before choosing an older Giga, check whether the operating area has access to:

A truck that can be repaired locally is usually more useful than one with better specifications but poor support.

Parts Availability: Confirm Before Buying

For an older heavy-duty truck, routine-parts availability should be checked before shipment.

Ask local suppliers about:

Use the complete chassis number when ordering major components.

Shipping an Isuzu Giga from Japan to DR Congo

Heavy trucks require more shipping planning than passenger vehicles.

Before purchase, confirm:

Shipping cost can vary substantially between a tanker, dump, cargo body and tractor configuration.

For the wider process, see How to Ship a Truck from Japan to DR Congo.

Plan for the Full Landed Cost

The Japan purchase price is only one part of the investment.

Budget for:

A lower-priced truck can become more expensive if it requires tyres, brakes, engine repair or body-equipment work immediately after arrival.

Documents for DR Congo Import

Vehicle documentation should be checked before shipment.

Common export and shipping documents can include:

Japanese Export Certificate
Commercial Invoice
Bill of Lading
Packing or shipping information where applicable
Inspection-related documentation when required

Vehicle and chassis information should match across all documents.

For a broader checklist, see the DR Congo Vehicle Import Documents Guide.

Import regulations, taxes, inspection requirements and customs procedures can change. Confirm the latest requirements for DR Congo before purchase and shipment.

Check Recall History Using the Chassis Number

Isuzu's historical recall records include the PJ-CYM77Q6 model family produced during 2006 and 2007.

Before buying an older Giga, use the complete chassis number to check:

Applicable recall campaigns
Whether recall work was completed
Service history where available

This is especially useful for a truck expected to return to heavy commercial service.

How to Compare Two Used Isuzu Giga Trucks

Check	Giga A	Giga B
Model Code	Confirm	Confirm
Engine Model	Confirm	Confirm
Engine Specification	Confirm	Confirm
Registered Payload	Compare	Compare
Gross Vehicle Weight	Compare	Compare
Axle Configuration	Compare	Compare
Body Type	Compare	Compare
Transmission	Compare	Compare
Engine Condition	Inspect	Inspect
Chassis Condition	Inspect	Inspect
Brake System	Inspect	Inspect
Tyres	Inspect	Inspect
Working Equipment	Test	Test
Local Parts Support	Confirm	Confirm
Shipping Cost	Calculate	Calculate
Inland Transport	Calculate	Calculate
Total Landed Cost	Calculate	Calculate

This gives a more useful commercial comparison than choosing only by production year, mileage or FOB price.

Who Should Consider a PJ-CYM77Q6?

A PJ-CYM77Q6 6UZ1 can be worth considering for a DR Congo buyer who:

Needs a genuine heavy-duty commercial truck
Regularly moves heavy or high-volume cargo
Has access to Isuzu heavy-truck maintenance support
Can source 6UZ1 service parts
Can inspect the chassis and drivetrain before purchase
Has checked the body equipment carefully
Has calculated shipping and inland transport costs

A smaller Isuzu Forward may make more financial sense when the business does not need a Giga's heavy-duty capacity.

FAQ: Isuzu Giga PJ-CYM77Q6 and 6UZ1

What engine does the Isuzu Giga PJ-CYM77Q6 use?

The PJ-CYM77Q6 is associated with Isuzu's 6UZ1 diesel engine family. The 6UZ1 has 9,839cc of displacement and an inline six-cylinder layout.

Does every PJ-CYM77Q6 have 400PS?

No. Do not apply one 6UZ1 output figure to every truck. Isuzu produced different 6UZ1 specifications. Official 2006 documentation, for example, lists a 6UZ1-TCS version at 380PS. Confirm the actual engine specification of the individual truck.

Is the PJ-CYM77Q6 suitable for DR Congo?

It can suit heavy freight, industrial, construction and specialized commercial work when the body, registered payload, drivetrain and condition match the intended job. Local parts and workshop support should also be checked.

Is the 6UZ1 a common-rail diesel?

Yes. The 6UZ1 generation associated with this Giga uses electronically controlled common-rail diesel fuel injection and turbocharging.

Should I buy an Isuzu Giga or an Isuzu Forward?

Choose the Giga when the business genuinely requires a heavy-duty truck. Choose a Forward when medium-duty capacity is sufficient and lower tyre, fuel, freight and maintenance costs are more important.

Choose the Giga for the Actual Heavy-Duty Job

The Isuzu Giga PJ-CYM77Q6 can be a useful heavy-duty platform for DR Congo, but the 6UZ1 engine alone should not determine the purchase.

Before buying, compare:

EVERY TRADING has exported Japanese vehicles since 2006 and can help overseas buyers compare heavy-duty trucks according to model code, engine, body type, payload, destination and commercial use.

Looking for an Isuzu Giga? View the current used Isuzu Giga stock from Japan and compare dump trucks, cargo trucks, tractor heads and other heavy-duty configurations.

If a Giga is larger than your operation requires, browse the wider Japanese used truck stock and choose the correct truck class for your cargo and route.
